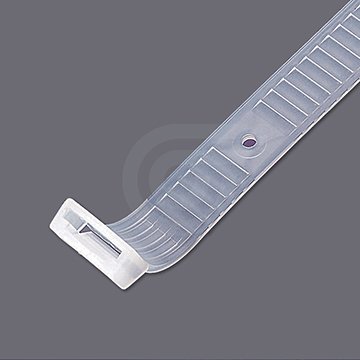

Air Conditioner Tube Ties
Model : BT
– Air conditioner tube ties are designed for fixing air conditioner tubes or water pipes.
– The special one-piece construction is designed for fixing air conditioner tubes or water pipes
– Fix a screw or nail on the wall before bundling and fastening
– Special 20 mm width cable ties for the fastening of isolated tubes
Material : PE
Color : All colors are available upon request
Specification Information
Certificate
Specifications

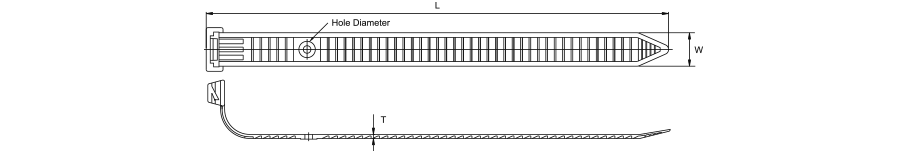

| Part.No | Length | Width | thickness | Max.Bundle Dia. | Hole Dia. | Mounting Screw | Min. Loop Tensile Strength | operating temperature | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | kg(lbs) | Max. | Min. | ||
| BT-250 | 235 | 9.25 | 20 | 0.78 | 2.4 | 0.09 | 70 | 2.76 | 4.5 | 0.18 | M4 | 20(44) | 80˚ C (176˚ F) | -40˚ C (-40˚ F) |
| BT-290 | 275 | 10.82 | 20 | 0.78 | 2.4 | 0.09 | 80 | 3.15 | 4.5 | 0.18 | M4 | 20(44) | 80˚ C (176˚ F) | -40˚ C (-40˚ F) |
