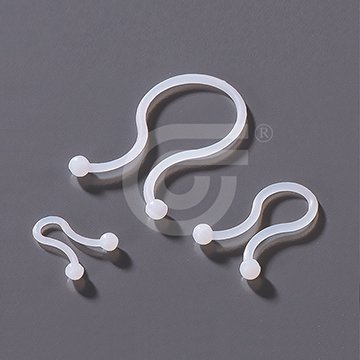

Twist Locks
Model : TH-E
– Twist locks are designed to support light weigh wire bundles when properly applied on any clean, smooth, grease free surface.
– Reusable and releasable for easy wire bunding.
– Easy open-and-twist to cables.
Material : UL Approved Polyamide 6.6, UL94 V2
Color : Nature color
Application : Automation, Electrical Wiring
Specification Information
Certificate
Specifications

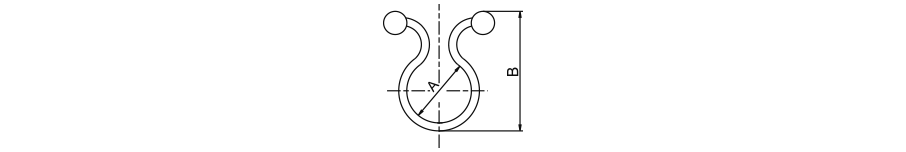

Part.No | Bundle Dia. | Bundle Dia. | A | A | B | B |
mm | inch | mm | inch | mm | inch | |
TH-D | ~10.2 | 0.402 | 11.2 | 0.441 | 28.4 | 1.118 |
TH-E | ~4.5 | 0.177 | 5.2 | 0.205 | 21 | 0.827 |
TH-F | ~7.3 | 0.287 | 8.3 | 0.327 | 25.2 | 0.992 |
TH-G | ~10.5 | 0.413 | 11.5 | 0.453 | 30.9 | 1.217 |
TH-H | ~14.0 | 0.551 | 15 | 0.591 | 35.1 | 1.382 |
TH-I | ~17.0 | 0.669 | 18 | 0.709 | 40 | 1.57 |
TH-J | ~19 | 0.748 | 19.5 | 0.768 | 42.5 | 1.673 |
TH-K | ~22 | 0.866 | 22.5 | 0.886 | 45.5 | 1.791 |
TH-L | ~5 | 0.197 | 5.2 | 0.205 | 22 | 0.866 |
